VHDL(very high speed integrated circuit Hardware Descriptive Language) was originally developed at the behest of the U.S Department of Defense in order to document the behavior of the ASICs that supplier companies were including in equipment. That is to say, VHDL was developed as an alternative to huge, complex manuals which were subject to implementation-specific details
VHDL program is used to implement the hardware modules(like multipliers, ALUs etc.,) on FPGAs and ASICs etc.,
To simulate the VHDL programs we can use ModelSim software, Active HDL, xilinx etc., but i use ModelSim.
to see how to use Modelsim follow this link
http://www.youtube.com/watch?v=VTMelKXXmho
A vhdl program has the following syntax. this is just basic syntax
library ieee;
use ieee.std_logic_1164.all;
ENTITY <entity_name> IS
PORT(INPUTS:IN STD_LOGIC;
OUPUTS:OUT STD_LOGIC
------------------------------------
---------- etc.,
);
END <entity_name>;
ARCHITECTURE <architecture_name> OF <entity_name> IS
COMPONENT DECLARATION;
SIGNAL <signal_name>:<signal_type>;
BEGIN
---design flow---
END <architecture_name>;
---------------------------------------------------------------------------------------------------------------
1).A simple Full Adder progam as follows:-
-------------------------------------------------------------------------------------------------------------
To test the functionality we can give signal in the run time or by writing TEST_BENCH code..
always writing test bench code is more appreciable
the TEST_BENCH code for the above full adder is shown here
------------------------------------------------------------------------------------------------------------
library IEEE;
USE IEEE.STD_LOGIC_1164.ALL;
entity fulladder is
port(a,b,c:inout std_logic;
sum,carry:out std_logic);
end fulladder;
architecture fulladder of fulladder is
begin
sum<= a xor b xor c;
carry<=( a and b) or (b and c)or(c and a);
DUT:process
begin
wait for 3 ns;
a<='1';
b<='1';
c<='0';wait for 10 ns;
end process;
end fulladder;
library ieee;
use ieee.std_logic_1164.all;
entity full_subtractor is
port(A,B,Bin:in std_logic;
D,Bout:out std_logic
);
end full_subtractor;
architecture full_sub of full_subtractor is
begin
D<= A xor B xor Bin;
Bout<=(B and (not A)) or ((A xnor B) and Bin);
-- full subtractor
library ieee;
use ieee.std_logic_1164.all;
entity full_subtractor is
port(A,B,Bin:inout std_logic;
D,Bout:out std_logic
);
end full_subtractor;
architecture full_sub of full_subtractor is
begin
D<= A xor B xor Bin;
Bout<=(B and (not A)) or ((A xnor B) and Bin);
DUT:process
begin
wait for 3 ns;
A<='0';
B<='1';
Bin<='1';wait for 10 ns;
end process;
end full_sub;
library ieee;
use ieee.std_logic_1164.all;
entity dff_async_reset is
port (
data :inout std_logic;-- Data input
clk :inout std_logic;-- Clock input
reset :inout std_logic;-- Reset input
q :out std_logic -- Q output
);
end entity;
architecture rtl of dff_async_reset is
begin
process (clk, reset) begin
if (reset = '0') then
q <= '0';
elsif (rising_edge(clk)) then
q <= data;
end if;
end process;
end architecture;
Symbol:-
Result:-
-----------------------------------------------------------------------------------------------------------
T_Flip_Flop:-
library ieee;
use ieee.std_logic_1164.all;
entity tff_async_reset is
port (
data :in std_logic; -- Data input
clk :in std_logic; -- Clock input
reset :in std_logic; -- Reset input
q :out std_logic -- Q output
);
end entity;
architecture rtl of tff_async_reset is
signal t :std_logic;
begin
process (clk, reset,data) begin
if (reset = '0') then
t <= '0';
elsif (rising_edge(clk)) then
t <= not data;
end if;
end process;
q <= t;
end architecture;
Symbol:-
Result:-
3-bit UP-Counter:-
----------------------------------------
----------- 3-bit counter---------------
-----------------------------------------
library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;
entity counter_3bit is
port(
clk:in std_logic;
reset:in std_logic;
cout:out std_logic_vector(2 downto 0)
);
end counter_3bit;
architecture counter_3bit of counter_3bit is
begin
process(clk)
variable count:std_logic_vector(2 downto 0);
begin
if reset='0' then
count := "000";
elsif rising_edge(clk) then
count := count+1;
end if;
cout<=count;
end process;
end counter_3bit;
Circuit connections:-
-- 4x1 mux
library ieee;
use ieee.std_logic_1164.all;
entity mux_4 is
port(I:inout std_logic_vector(3 downto 0);
s0,S1:inout std_logic;
y:out std_logic
);
end mux_4;
architecture mux_4 of mux_4 is
signal x:integer;
begin
x <= 0 when s0 = '0' and s1 = '0' else
1 when s0 = '1' and s1 = '0' else
2 when s0 = '0' and s1 = '1' else
3 when s0 = '1' and s1 = '1' else
4;
y <= I(0) when x = 0 else
I(1) when x = 1 else
I(2) when x = 2 else
I(3) when x = 3 else
'Z';
DUT:process -- test bench code
begin
I(0) <= '0','0' after 5 ns, '0' after 10 ns, '1' after 15 ns, '0' after 20 ns;
I(1) <= '0','1' after 5 ns, '0' after 10 ns, '0' after 15 ns, '1' after 20 ns;
I(2) <= '1','0' after 5 ns, '1' after 10 ns, '1' after 15 ns, '0' after 20 ns;
I(3) <= '1','1' after 5 ns, '1' after 10 ns, '0' after 15 ns, '1' after 20 ns;
s0 <= '0';
s1 <= '0'; wait for 5 ns;
s0 <= '1';
s1 <= '0'; wait for 5 ns;
s0 <= '0';
s1 <= '1'; wait for 5 ns;
s0 <= '1';
s1 <= '1'; wait for 5 ns;
wait;
end process;
end mux_4;
-----------------------------------------------------------------------------------------------------------------------
8-bit UP Counter:-
-----------------------------------------------------------------------------------------------------------------------
16-bit Addition:-
-----------------------------------------------------------------------------------------------------------------------

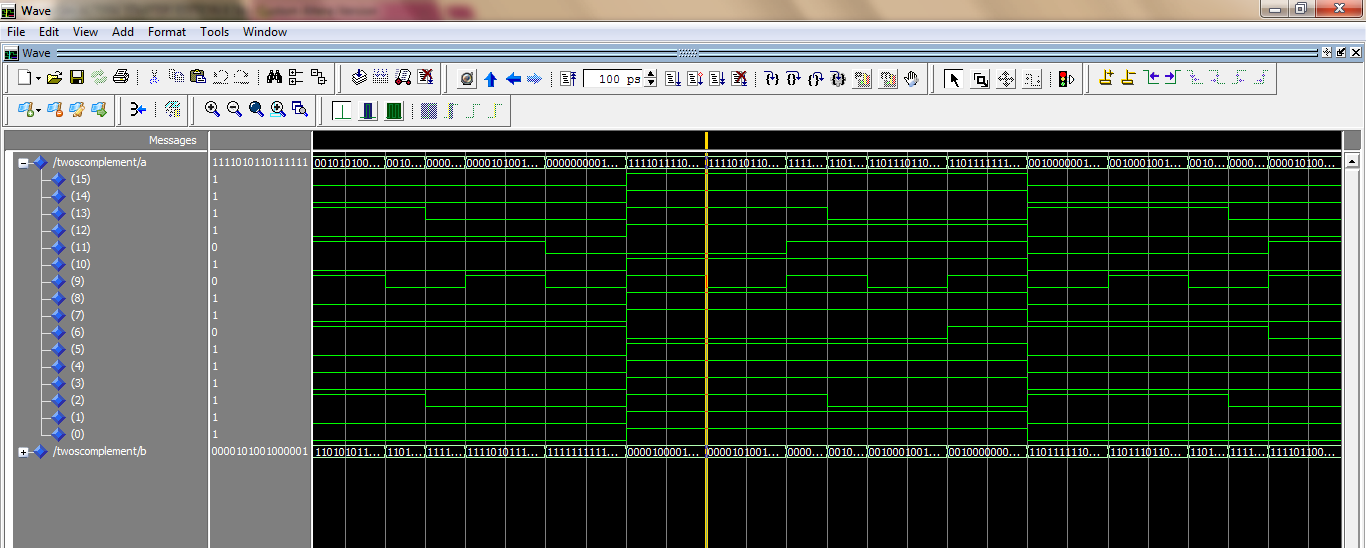

2's complement :- 16-bit
16-bit subtractor:-
---------------------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------------------------
8 to 3 Encoder:-
-----------------------------------------------------------------------------------------------------------------------
8x4 multiplier:-
VHDL program is used to implement the hardware modules(like multipliers, ALUs etc.,) on FPGAs and ASICs etc.,
To simulate the VHDL programs we can use ModelSim software, Active HDL, xilinx etc., but i use ModelSim.
to see how to use Modelsim follow this link
http://www.youtube.com/watch?v=VTMelKXXmho
A vhdl program has the following syntax. this is just basic syntax
library ieee;
use ieee.std_logic_1164.all;
ENTITY <entity_name> IS
PORT(INPUTS:IN STD_LOGIC;
OUPUTS:OUT STD_LOGIC
------------------------------------
---------- etc.,
);
END <entity_name>;
ARCHITECTURE <architecture_name> OF <entity_name> IS
COMPONENT DECLARATION;
SIGNAL <signal_name>:<signal_type>;
BEGIN
---design flow---
END <architecture_name>;
---------------------------------------------------------------------------------------------------------------
1).A simple Full Adder progam as follows:-
library IEEE;
USE IEEE.STD_LOGIC_1164.ALL;
entity fulladder is
port(a,b,c:in std_logic;
sum,carry:out std_logic
);
);
end fulladder;
architecture fulladder of fulladder is
begin
sum<= a xor b xor c;
carry<=( a and b) or (b and c)or(c and a);
end fulladder;-------------------------------------------------------------------------------------------------------------
To test the functionality we can give signal in the run time or by writing TEST_BENCH code..
always writing test bench code is more appreciable
the TEST_BENCH code for the above full adder is shown here
------------------------------------------------------------------------------------------------------------
library IEEE;
USE IEEE.STD_LOGIC_1164.ALL;
entity fulladder is
port(a,b,c:inout std_logic;
sum,carry:out std_logic);
end fulladder;
architecture fulladder of fulladder is
begin
sum<= a xor b xor c;
carry<=( a and b) or (b and c)or(c and a);
DUT:process
begin
wait for 3 ns;
a<='1';
b<='1';
c<='0';wait for 10 ns;
end process;
end fulladder;
-------------------------------------------------------------------------------------------------------------------
Full Subtracter programming:-
library ieee;
use ieee.std_logic_1164.all;
entity full_subtractor is
port(A,B,Bin:in std_logic;
D,Bout:out std_logic
);
end full_subtractor;
architecture full_sub of full_subtractor is
begin
D<= A xor B xor Bin;
Bout<=(B and (not A)) or ((A xnor B) and Bin);
end full_sub;
TEST_BENCH CODE
-- full subtractor
library ieee;
use ieee.std_logic_1164.all;
entity full_subtractor is
port(A,B,Bin:inout std_logic;
D,Bout:out std_logic
);
end full_subtractor;
architecture full_sub of full_subtractor is
begin
D<= A xor B xor Bin;
Bout<=(B and (not A)) or ((A xnor B) and Bin);
DUT:process
begin
wait for 3 ns;
A<='0';
B<='1';
Bin<='1';wait for 10 ns;
end process;
end full_sub;
-------------------------------------------------------------------------------------------------------------
D Flip Flop:-
library ieee;
use ieee.std_logic_1164.all;
entity dff_async_reset is
port (
data :inout std_logic;-- Data input
clk :inout std_logic;-- Clock input
reset :inout std_logic;-- Reset input
q :out std_logic -- Q output
);
end entity;
architecture rtl of dff_async_reset is
begin
process (clk, reset) begin
if (reset = '0') then
q <= '0';
elsif (rising_edge(clk)) then
q <= data;
end if;
end process;
end architecture;
Symbol:-
-----------------------------------------------------------------------------------------------------------
T_Flip_Flop:-
library ieee;
use ieee.std_logic_1164.all;
entity tff_async_reset is
port (
data :in std_logic; -- Data input
clk :in std_logic; -- Clock input
reset :in std_logic; -- Reset input
q :out std_logic -- Q output
);
end entity;
architecture rtl of tff_async_reset is
signal t :std_logic;
begin
process (clk, reset,data) begin
if (reset = '0') then
t <= '0';
elsif (rising_edge(clk)) then
t <= not data;
end if;
end process;
q <= t;
end architecture;
Symbol:-
Result:-
----------------------------------------------------------------------------------------------------------------------
----------------------------------------
----------- 3-bit counter---------------
-----------------------------------------
library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;
entity counter_3bit is
port(
clk:in std_logic;
reset:in std_logic;
cout:out std_logic_vector(2 downto 0)
);
end counter_3bit;
architecture counter_3bit of counter_3bit is
begin
process(clk)
variable count:std_logic_vector(2 downto 0);
begin
if reset='0' then
count := "000";
elsif rising_edge(clk) then
count := count+1;
end if;
cout<=count;
end process;
end counter_3bit;
Circuit connections:-
Result:-
-------------------------------------------------------------------------------------------------------------------
4x1 Multiplexer:-
-- 4x1 mux
library ieee;
use ieee.std_logic_1164.all;
entity mux_4 is
port(I:inout std_logic_vector(3 downto 0);
s0,S1:inout std_logic;
y:out std_logic
);
end mux_4;
architecture mux_4 of mux_4 is
signal x:integer;
begin
x <= 0 when s0 = '0' and s1 = '0' else
1 when s0 = '1' and s1 = '0' else
2 when s0 = '0' and s1 = '1' else
3 when s0 = '1' and s1 = '1' else
4;
y <= I(0) when x = 0 else
I(1) when x = 1 else
I(2) when x = 2 else
I(3) when x = 3 else
'Z';
DUT:process -- test bench code
begin
I(0) <= '0','0' after 5 ns, '0' after 10 ns, '1' after 15 ns, '0' after 20 ns;
I(1) <= '0','1' after 5 ns, '0' after 10 ns, '0' after 15 ns, '1' after 20 ns;
I(2) <= '1','0' after 5 ns, '1' after 10 ns, '1' after 15 ns, '0' after 20 ns;
I(3) <= '1','1' after 5 ns, '1' after 10 ns, '0' after 15 ns, '1' after 20 ns;
s0 <= '0';
s1 <= '0'; wait for 5 ns;
s0 <= '1';
s1 <= '0'; wait for 5 ns;
s0 <= '0';
s1 <= '1'; wait for 5 ns;
s0 <= '1';
s1 <= '1'; wait for 5 ns;
wait;
end process;
end mux_4;
Symbol:-
Result:-
8-bit UP Counter:-
library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;
entity up_counter_8bit is
port (
cout
:out std_logic_vector (7 downto 0);
enable :in std_logic;
clk
:in std_logic;
reset
:in std_logic );
end entity;
architecture rtl of up_counter_8bit is
signal count :std_logic_vector (7 downto 0);
begin
process (clk, reset) begin
if (reset = '1') then
count <= (others=>'0');
elsif (rising_edge(clk)) then
if (enable = '1') then
count <= count + 1;
end if;
end if;
end process;
cout <= count;
end architecture;
Result:-
16-bit Addition:-
library
ieee;
use
ieee.std_logic_1164.all;
use
ieee.std_logic_arith.all;
use
ieee.numeric_std.all;
use
work.processor_package.all;
entity
addition_of_16bit is
generic(n:natural:=16);
port(A:inout std_logic_vector(15 downto
0);
B:inout std_logic_vector(15 downto
0);
--cin:in std_logic;
sum:inout std_logic_vector(15 downto
0);
carry:out std_logic;
s:inout std_logic
);
end
addition_of_16bit;
architecture
addition_of_16bit of addition_of_16bit is
begin
addition:process(A,B)
variable tempsum:std_logic_vector(15
downto 0);
variable tempcarry:std_logic;
begin
if s='1' then
tempcarry:='0';
for i in 0 to (n-1) loop
tempsum(i):=A(i) xor B(i)
xor tempcarry;
tempcarry:=(A(i) and B(i))
or (B(i) and tempcarry) or (tempcarry and A(i));
end loop;
sum<=tempsum;
carry<=tempcarry;
end if;
end process addition;
DUT:process
begin
wait for 3 ns;
s<='1' ; wait for 10 ns;
A<="1010101010101010"; wait for 10 ns;
B<="0101010101010101"; wait for 1 ns;
s<='1'; wait for 20 ns;
A<="0001000100010001"; wait for 10 ns;
B<="1001100110011001"; wait for 1 ns;
wait;
end process DUT;
end
addition_of_16bit;
Result:-
-----------------------------------------------------------------------------------------------------------------------
2's complement :- 16-bit
library
ieee;
use
ieee.std_logic_1164.all;
use
ieee.numeric_std.all;
entity
twoscomplement is
port(A:inout std_logic_vector(15 downto
0);
B:out std_logic_vector(15 downto
0)
);
end twoscomplement;
architecture
twoscomplement of twoscomplement is
begin
process(A)
variable inv:unsigned (15 downto 0);
begin
inv := unsigned (not A);
inv := inv+1;
B<= std_logic_vector(inv);
end process;
end
twoscomplement;
Result:-
-----------------------------------------------------------------------------------------------------------------------
16-bit subtractor:-
library
ieee;
use
ieee.std_logic_1164.all;
use
ieee.numeric_std.all;
use
ieee.std_logic_arith.all;
entity
subtraction_of_16bit is
generic(n:natural:=16);
port(A:inout std_logic_vector((n-1) downto
0);
B:inout std_logic_vector((n-1) downto
0);
s:inout std_logic;
sum:out std_logic_vector((n-1) downto
0);
carry:out std_logic
);
end
subtraction_of_16bit;
architecture
subtraction_of_16bit of subtraction_of_16bit is
signal
tempB:std_logic_vector((n-1) downto 0);
signal
tempcarry:std_logic;
signal
tempsum,sum1:std_logic_vector((n-1) downto 0);
begin
U1:entity work.twoscomplement port
map(B,tempB);
subtraction:process(A,tempB)
variable
tempsum1:std_logic_vector((n-1) downto 0);
variable
tempcarry1:std_logic;
begin
if s='0' then
tempcarry1:='0';
for i in 0 to (n-1)
loop
tempsum1(i):=A(i) xor
tempB(i) xor tempcarry1;
tempcarry1:=(A(i) and
tempB(i)) or (tempB(i) and tempcarry1) or (tempcarry1 and A(i));
end loop;
tempcarry<=tempcarry1;
tempsum<=tempsum1;
end if;
end process subtraction;
U2:entity work.twoscomplement port
map(tempsum,sum1);
carrycheck:process(tempcarry,tempsum,sum1)
begin
if(tempcarry='0') then
sum<=sum1;
carry<=tempcarry;
else
sum<=tempsum;
carry<=tempcarry;
end if;
end process carrycheck;
end subtraction_of_16bit;
----------------------------------------------------------------------------------------------------------------------
16-bit Registers:-
library ieee;
use
ieee.std_logic_1164.all;
package reg is
type bit16 is array (15 downto 0) of
std_logic;
type reg8_16 is array (7 downto 0) of bit16;
-- type sel is array (2
downto 0) of std_logic;
end package;
library ieee;
use
ieee.std_logic_1164.all;
use work.reg.all;
--use
ieee.std_logic_unsigned.all;
use
ieee.std_logic_arith.all;
use
ieee.numeric_std.all;
--use
ieee.std_logic_textio.all ;
entity registers is
generic(n:natural:=16);
port(Reg_in:inout bit16;
Reg_out:out bit16;
--
s:in std_logic_vector(2 downto 0);
en:inout std_logic;
clk:inout std_logic;
rw:inout std_logic
);
end registers;
architecture registers of registers is
signal tempreg:bit16;
begin
process
begin
for i in
1 to 1000 loop
clk<='1'; wait for 5 ns;
clk<='0';wait for 5 ns;
end loop;
wait;
end process;
ReadWrite:process(clk,Reg_in,rw)
variable Reg:bit16;
variable x:bit16;
begin
--- writing data to the corresponding
register
if clk'event and clk='1' then
if rw='0' then
Reg := Reg_in;
elsif rw='1' then
tempreg <= Reg;
end if;
end if;
end process ReadWrite;
Reg_out <= tempreg;
DUT:process
begin
en<='1';
rw<='0' after 10 ns, '1' after 20 ns;
Reg_in<="0101010100000000"
after 10 ns;
wait;
end process DUT;
end registers;
Result:-
----------------------------------------------------------------------------------------------------------------------
4-bit parallel adder Package Creation:-
library ieee;
use
ieee.std_logic_1164.all;
package p4bitadder is
function adder(a,b:in std_logic_vector;cin:in
std_logic) return std_logic_vector;
end;
package body p4bitadder
is
function adder(a,b:in std_logic_vector;cin:in
std_logic) return std_logic_vector is
variable x,s:std_logic_vector(4 downto 0);
begin
s(0):=a(0) xor b(0) xor cin;
x(0):=((a(0) and b(0)) or (b(0) and cin ) or
(cin and a(0)));
s(1):=a(1) xor b(1) xor x(0);
x(1):=((a(1) and b(1)) or (b(1) and x(0) ) or
(x(0) and a(1)));
s(2):=a(2) xor b(2) xor x(1);
x(2):=((a(2) and b(2)) or (b(2) and x(1) ) or
(x(1) and a(2)));
s(3):=a(3) xor b(3) xor x(2);
x(3):=((a(3) and b(3)) or (b(3) and x(2) ) or
(x(2) and a(3)));
s(4):=x(3);
return s;
end
function;
end package body;
--use the package
library ieee;
use
ieee.std_logic_1164.all;
use
work.p4bitadder.all;
entity fulladder_altera
is
port(a,b:in std_logic_vector(3 downto 0);
cin:in std_logic;
s:out std_logic_vector(3 downto 0);
cout:out std_logic
);
end fulladder_altera;
architecture
fulladder_altera of fulladder_altera is
signal x:std_logic_vector(4 downto 0);
begin
process(a,b,cin)
begin
x<=adder(a,b,cin);
end process;
s<=x(3 downto 0);
cout<=x(4);
end fulladder_altera;
Result:-
16x1 multiplexer:-
library
ieee;
use
ieee.std_logic_1164.all;
entity
mux_16 is
generic(n:integer:=16);
port(I:in std_logic_vector((n-1) downto 0);
y:out std_logic;
s:in std_logic_vector(3 downto 0)
);
end
mux_16;
architecture
mux_16 of mux_16 is
begin
y <= I(0) when s="0000"
else
I(1) when s="0001" else
I(2) when s="0010" else
I(3) when s="0011" else
I(4) when s="0100" else
I(5) when s="0101" else
I(6) when s="0110" else
I(7) when s="0111" else
I(8) when s="1000" else
I(9) when s="1001" else
I(10)
when s="1010" else
I(11) when s="1011" else
I(12) when s="1100" else
I(13) when s="1101" else
I(14) when s="1110" else
I(15) when s="1111" ;
end
mux_16;
Symbol:-
Symbol:-
Result:-
-----------------------------------------------------------------------------------------------------------------------
3 to 8 Decoder:-
library
ieee;
use
ieee.std_logic_1164.all;
entity
decoder_3to8 is
port(A,B,C: in std_logic;
en: in std_logic;
y: out std_logic_vector(7 downto 0)
);
end
decoder_3to8;
architecture
decoder of decoder_3to8 is
signal
x:integer;
begin
x <= 0 when A='0' and B='0' and C='0'
else
1 when A='1' and B='0' and C='1' else
2 when A='0' and B='1' and C='0' else
3 when A='1' and B='1' and C='0' else
4 when A='0' and B='0' and C='1' else
5 when A='1' and B='0' and C='1' else
6 when A='0' and B='1' and C='1' else
7 when A='1' and B='1' and C='1' else
8;
process(en,x)
begin
if en='1' then
case x is
when 0 => y <="00000001";
when 1 => y <="00000010";
when 2 => y <="00000100";
when 3 => y <="00001000";
when 4 => y <="00010000";
when 5 => y <="00100000";
when 6 => y <="01000000";
when 7 => y <="10000000";
when others => y <="00000000";
end case;
end if;
end process;
end
decoder;
Symbol:-
Symbol:-
Result:-
8 to 3 Encoder:-
library
ieee;
use
ieee.std_logic_1164.all;
entity
encoder_8to3 is
port(I: in std_logic_vector(7 downto 0);
en:in std_logic;
y:out std_logic_vector(2 downto 0)
);
end
encoder_8to3;
architecture
encoder of encoder_8to3 is
begin
process(en,I)
begin
if en='1' then
case I is
when "00000001" => y <=
"000";
when "00000010" => y <=
"001";
when "00000100" => y <=
"010";
when "00001000" => y <=
"011";
when "00010000" => y <=
"100";
when "00100000" => y <=
"101";
when "01000000" => y <=
"110";
when "10000000" => y <=
"111";
when others => y <=
"ZZZ";
end case;
end if;
end process;
end encoder;
Symbol:-
Symbol:-
Result:-
-----------------------------------------------------------------------------------------------------------------------
8x4 multiplier:-
library
ieee;
use
ieee.std_logic_1164.all;
entity
and2 is
port(a,b:in std_logic;
c:out std_logic
);
end
and2;
architecture
and2 of and2 is
begin
c<= a and b;
end
and2;
--
designing gate level binary full adder
library
ieee;
use
ieee.std_logic_1164.all;
entity
f_adder is
port(A,B,Cin,M_gate:in std_logic;
x:inout std_logic;
Cout,sum:out std_logic
);
end f_adder;
architecture fa of f_adder is
component and2 is
port(a,b:in std_logic;
c:out std_logic
);
end component;
begin
u: and2 PORT MAP(A,M_gate,x);
sum<=x xor B xor Cin;
Cout<=(x and B) or (B and cin) or
(cin and x);
end fa;
-- designing gate level 8-bit binary full
adder
library ieee;
use ieee.std_logic_1164.all;
entity fa8 IS
GENERIC(set:integer:=7);
port(A,B:in std_logic_vector(set downto 0);
Cin:in std_logic;
M_gate:in std_logic;
carry:out std_logic;
sum:out std_logic_vector(set downto 0)
);
end fa8;
architecture
fa8 of fa8 is
component f_adder is
port(A,B,Cin,M_gate:in std_logic;
Cout,sum:out std_logic
);
end component;
signal c:std_logic_vector(7 downto 0);
signal cary:std_logic;
begin
cary<= cin;
u1: f_adder PORT MAP
(A(0),B(0),cary,M_gate,c(0),sum(0));
u2: f_adder PORT MAP
(A(1),B(1),c(0),M_gate,c(1),sum(1));
u3: f_adder PORT MAP
(A(2),B(2),c(1),M_gate,c(2),sum(2));
u4: f_adder PORT MAP
(A(3),B(3),c(2),M_gate,c(3),sum(3));
u5: f_adder PORT MAP
(A(4),B(4),c(3),M_gate,c(4),sum(4));
u6: f_adder PORT MAP (A(5),B(5),c(4),M_gate,c(5),sum(5));
u7: f_adder PORT MAP
(A(6),B(6),c(5),M_gate,c(6),sum(6));
u8: f_adder PORT MAP
(A(7),B(7),c(6),M_gate,c(7),sum(7));
carry <= c(7);
end fa8;
--
designing 8x4 multiplier from 8-bit gate level binary full adder
--package creatrion
library ieee;
use ieee.std_logic_1164.all;
package length is
TYPE sum_length1 is array(7 downto 0) of
std_logic;
TYPE sum_length is array(3 downto 0) of
sum_length1;
end length;
library ieee;
use ieee.std_logic_1164.all;
use WORK.length.all;
use ieee.std_logic_arith.all;
use ieee.std_logic_unsigned.all;
entity mul is
port(A:in std_logic_vector(7 downto 0);
B:in std_logic_vector(3 downto 0);
-- cin:in std_logic;
output:out std_logic_vector(11
downto 0)
);
end mul;
architecture mul of mul is
component fa8 is
port(A,B:in
std_logic_vector(7 downto 0);
cin:in std_logic;
M_gate:in std_logic;
carry:out std_logic;
sum:out std_logic_vector(7 downto
0)
);
end component;
signal cout:std_logic_vector(3 downto 0);
signal
x1,x2,x3,x4,t1,t2,t3:std_logic_vector(7 downto 0);
begin
U1: fa8 PORT
MAP(A,"00000000",'0',B(0),cout(0),x1);
t1<=cout(0) & x1(7 downto 1);
U2: fa8 PORT
MAP(A,t1,'0',B(1),cout(1),x2);
t2<=cout(1) & x2(7 downto 1);
U3: fa8 PORT
MAP(A,t2,'0',B(2),cout(2),x3);
t3<= cout(2) & x3(7 downto 1);
U4: fa8 PORT
MAP(A,t3,'0',B(3),cout(3),x4);
output<=cout(3) & x4 & x3(0)
& x2(0) & x1(0);
end mul;
Symbol:-
Result:-
--------------------------------------------------------------------------------------------------------------------
2-point FFT-DFT using VHDL Programming:
Click here to view and download FFT using VHDL
MORE STUFF is coming soon......
2-point FFT-DFT using VHDL Programming:
Click here to view and download FFT using VHDL
MORE STUFF is coming soon......
No comments:
Post a Comment
comment here
